BJ Series – Variable Pump & Servo Motor Machines
Clamp force 500 - 22,000 kN
Contact us at: sales@kontrolpi.com // +1.619.606.2487
Variable Pump Series – Advanced designed hydraulic system makes the
operation more stable and lower noise and save the energy up to 24% – 45%.
Servo Series – Servo motor with energy-saving controlled hydraulic systems save electricity up to 30% – 50%, Shorter response time and more stability.

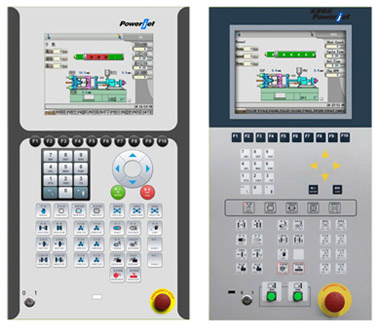

Control System
Latest technology from Techmation.
High resolution LCD screen with optimized panel layout for convenient machine operation.
High speed CPU increases capacity for memory to meet the requirements of system control.
200 sets of moulds information storage. SD card/USB input for large-scale production management.
Network communication port to achieve the fully automation of production.
Auto detect the injection status to make sure the machine running correctly and products normal data.
Machine can be stop by forming numbers.
Mold auto adjusting with clamping force.
Clamping System
Five pivots double toggle mould clamping mechanism is featured with fast opening and clamping, stable and energy saving
Differential fast mould clamping device effectively reduces cycle time and increases working efficiency of the machine.
Reliable low pressure protection function greatly prolongs the service life of the mold.
T-slot platen makes fixing the moulds more convenient (Optional)
High precision electric meter is used to control position up to 0.1mm
Mechanical and double electric interlock protection devices guarantee the safety of the operators. (Machines above 400T is also equipped with hydraulic safety device)
Wear resistant hard chromium plated tie bar is featured with high-tensile and high strength.
Hydraulic motor with centering gear mould adjusting system makes mould adjusting system to be better.
Injection System
Double cylinder balance injection mechanism provides high-pressure injection. Very easy for maintenance.
Precision electronic meter control on material injection, molten stroke.
Machines above 250 ton adopts double injection cylinders to prevent injection nozzle displacement and avoid material leakage.
Lubrication System
Major friction parts are equipped with lubrication points
Central oil supply system is used for hinges. Electric lubricant pump controlled by computer sends automatically lubricating oil (grease) to lubrication points.
Intelligent volumetric centralized lubricating system, controlled by computer, sends quantitatively lubricating oil (grease) to wearing points, and guarantees that the key carrying surface and lubricated reliably.
Simple, convenient and accessible to repair.
